50.4V 6A 12S Lithium Battery Charger - for 44.4V Li-ion/LiPo battery pack; UK, EU plug

Product image 1
1 / 3

50.4V 6A 12S Lithium Battery Charger - for 44.4V Li-ion/LiPo battery pack; UK, EU plug

50.4V 6A 12S Lithium Battery Charger -  for 44.41V Li-ion/LiPo battery pack;  UK, EU plug

Charging voltage: 50.4V CC/CV

         green light -  when fully charged or not connected.

         red light - charging

Protections:

constant voltage, constant current, over-voltage, over current protection function; indicator light conversion; automatic recovery.

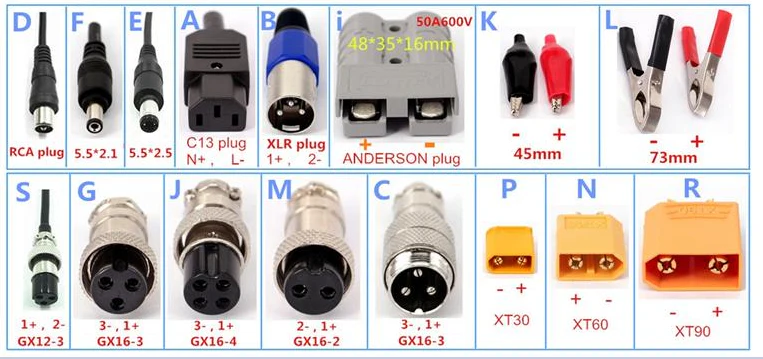

Connectors:  default is DC 5.5x2.1 mm

                 Other connectors are available.


Output current -  6A, constant current charging, the indicator light is red
Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)
DC voltage adjustable range, 0-12.6V
Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
Dimensions, 115 × 48 × 28mm
Weight, 160G

50.4V 6A 12S Lithium Battery Charger -  for 44.41V Li-ion/LiPo battery pack;  UK, EU plug

Charging voltage: 50.4V CC/CV

         green light -  when fully charged or not connected.

         red light - charging

Protections:

constant voltage, constant current, over-voltage, over current protection function; indicator light conversion; automatic recovery.



Connectors:  default is DC 5.5x2.1 mm

                 Other connectors are available.


Output current -  6A, constant current charging, the indicator light is red
Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)
DC voltage adjustable range, 0-12.6V
Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
Dimensions, 115 × 48 × 28mm
Weight, 160G

Select Connector
Select Plug
From $39.20

Original: $112.01

-65%
50.4V 6A 12S Lithium Battery Charger - for 44.4V Li-ion/LiPo battery pack; UK, EU plug—

$112.01

$39.20

Description

50.4V 6A 12S Lithium Battery Charger -  for 44.41V Li-ion/LiPo battery pack;  UK, EU plug

Charging voltage: 50.4V CC/CV

         green light -  when fully charged or not connected.

         red light - charging

Protections:

constant voltage, constant current, over-voltage, over current protection function; indicator light conversion; automatic recovery.



Connectors:  default is DC 5.5x2.1 mm

                 Other connectors are available.


Output current -  6A, constant current charging, the indicator light is red
Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)
DC voltage adjustable range, 0-12.6V
Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
Dimensions, 115 × 48 × 28mm
Weight, 160G
